Non-Astronomy Imagers - Commercial, lndustrial, Scientific, Medical, etc.


Janesick six-inch commercial silicon imager wafer

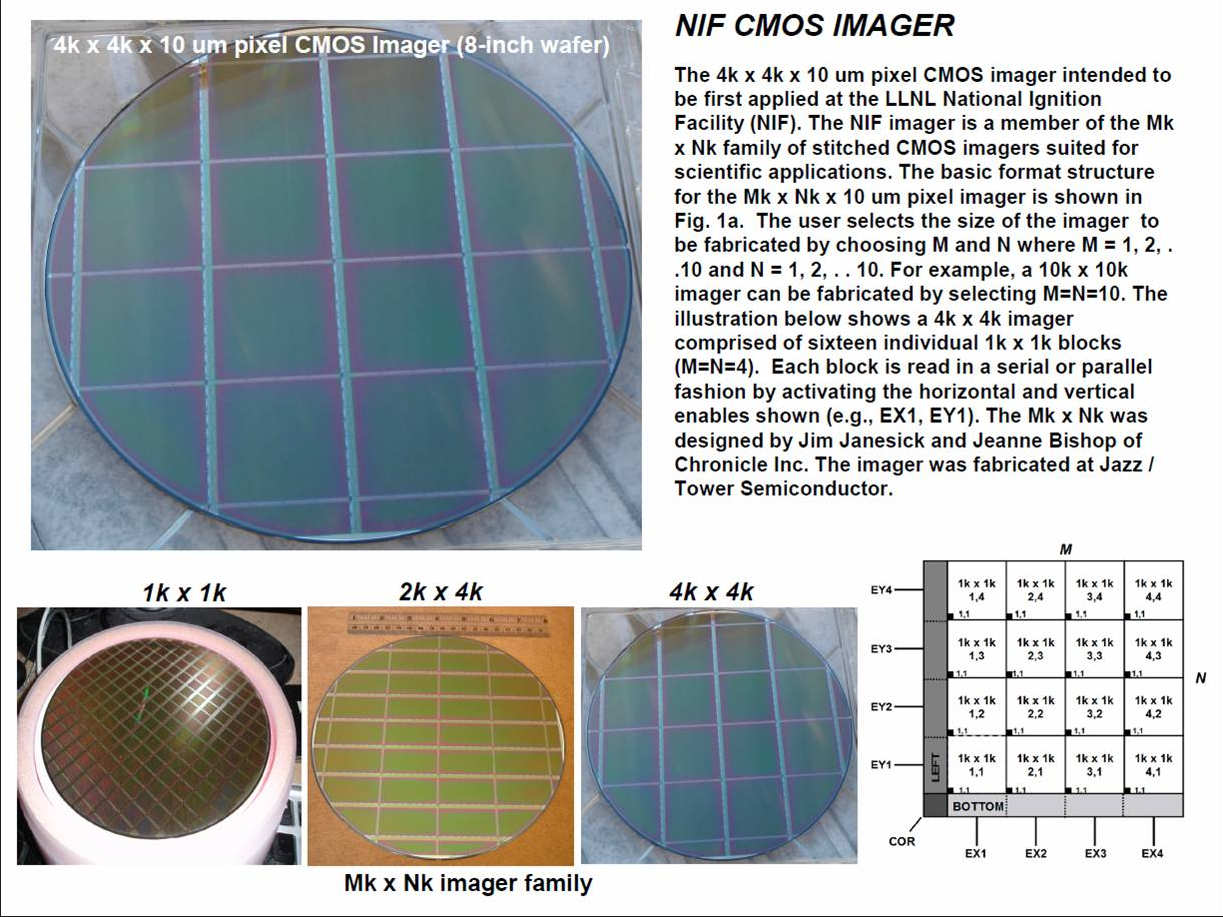

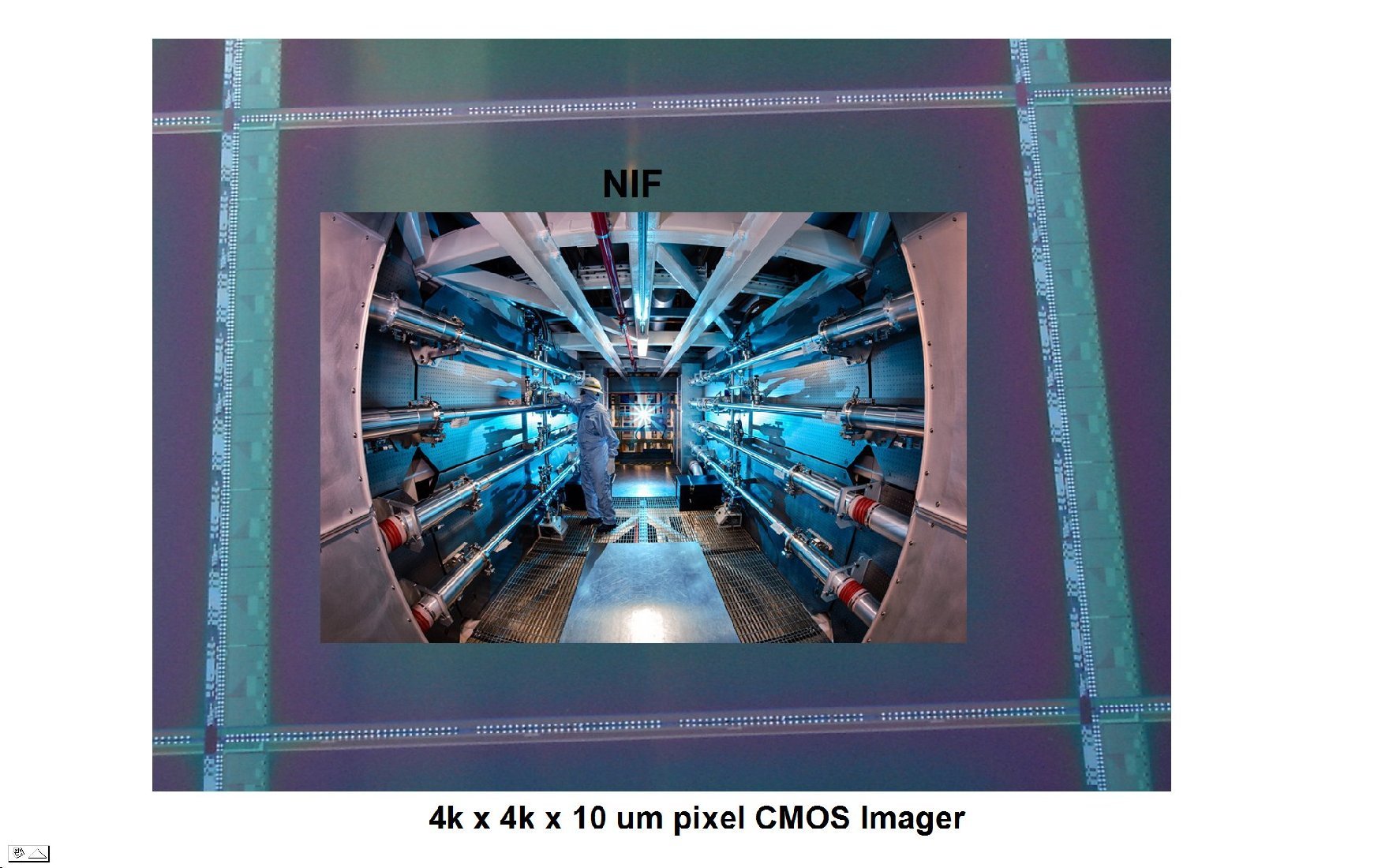

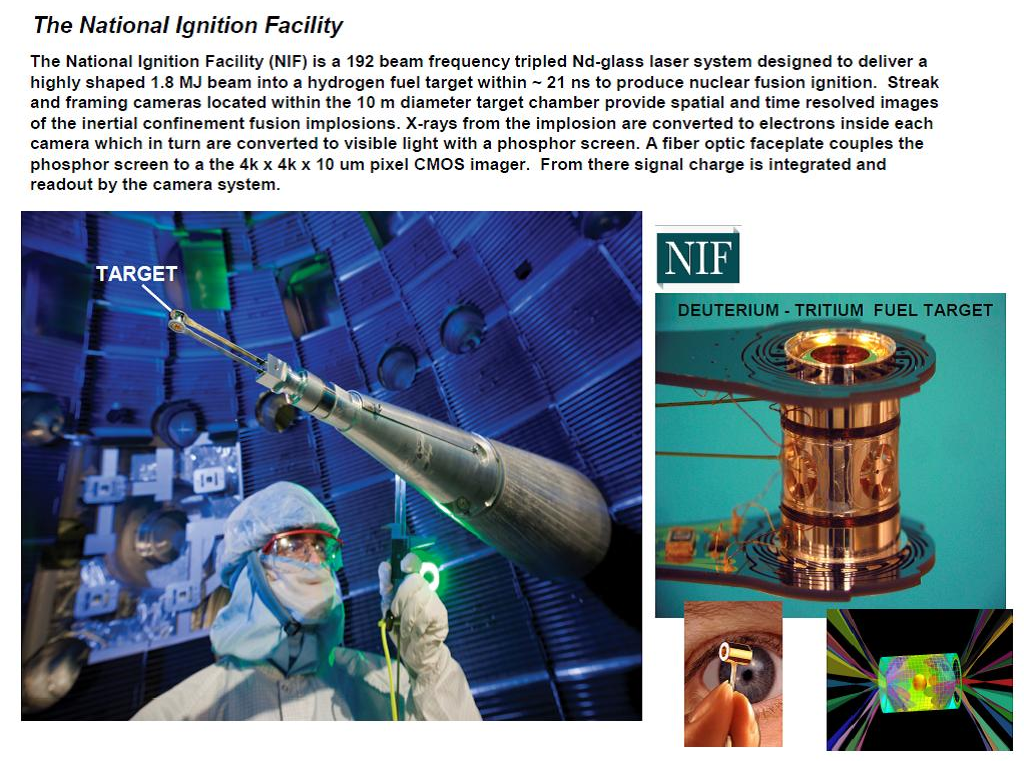

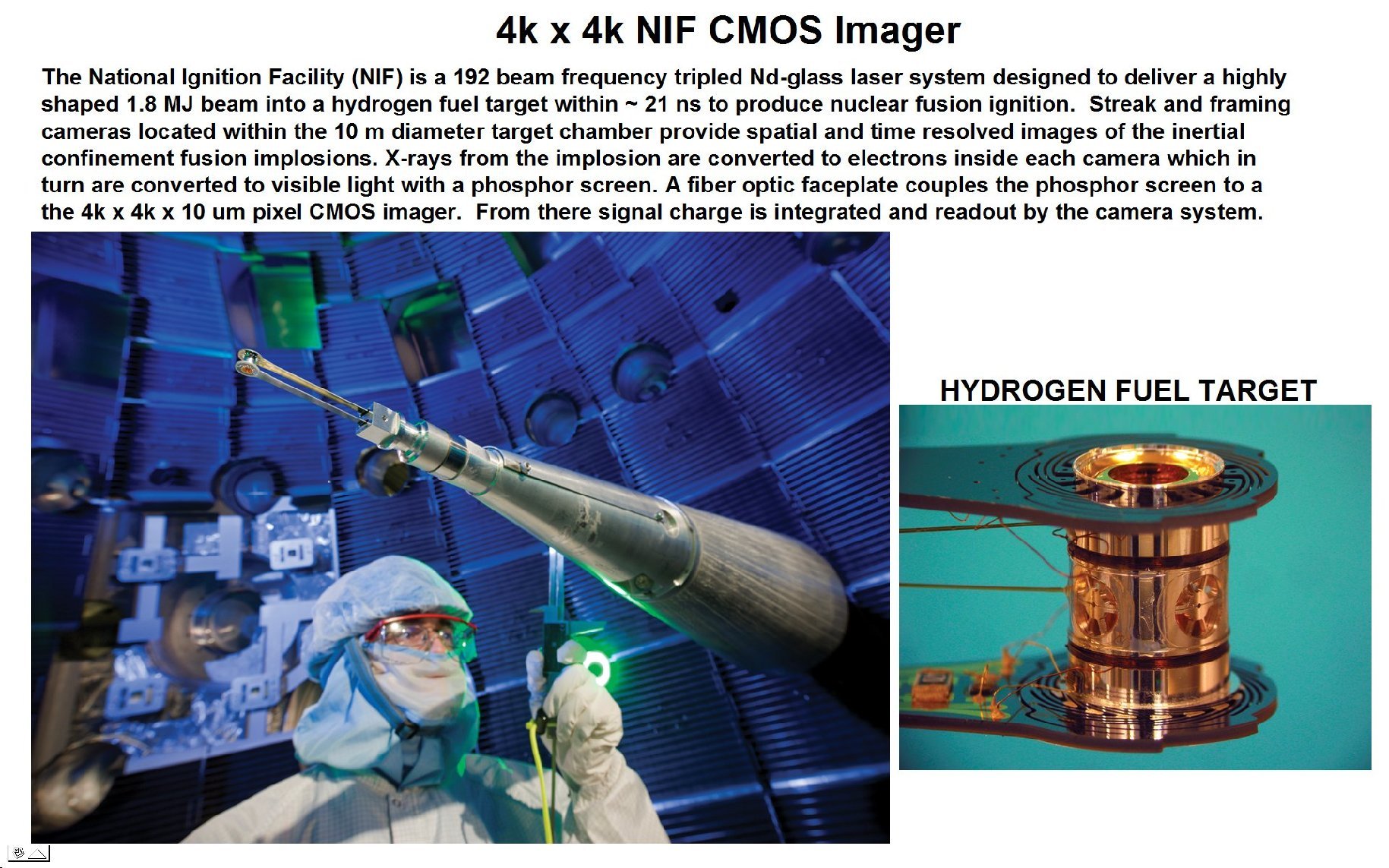

janesick 4k x 4k National Ignition Facility commercial imager

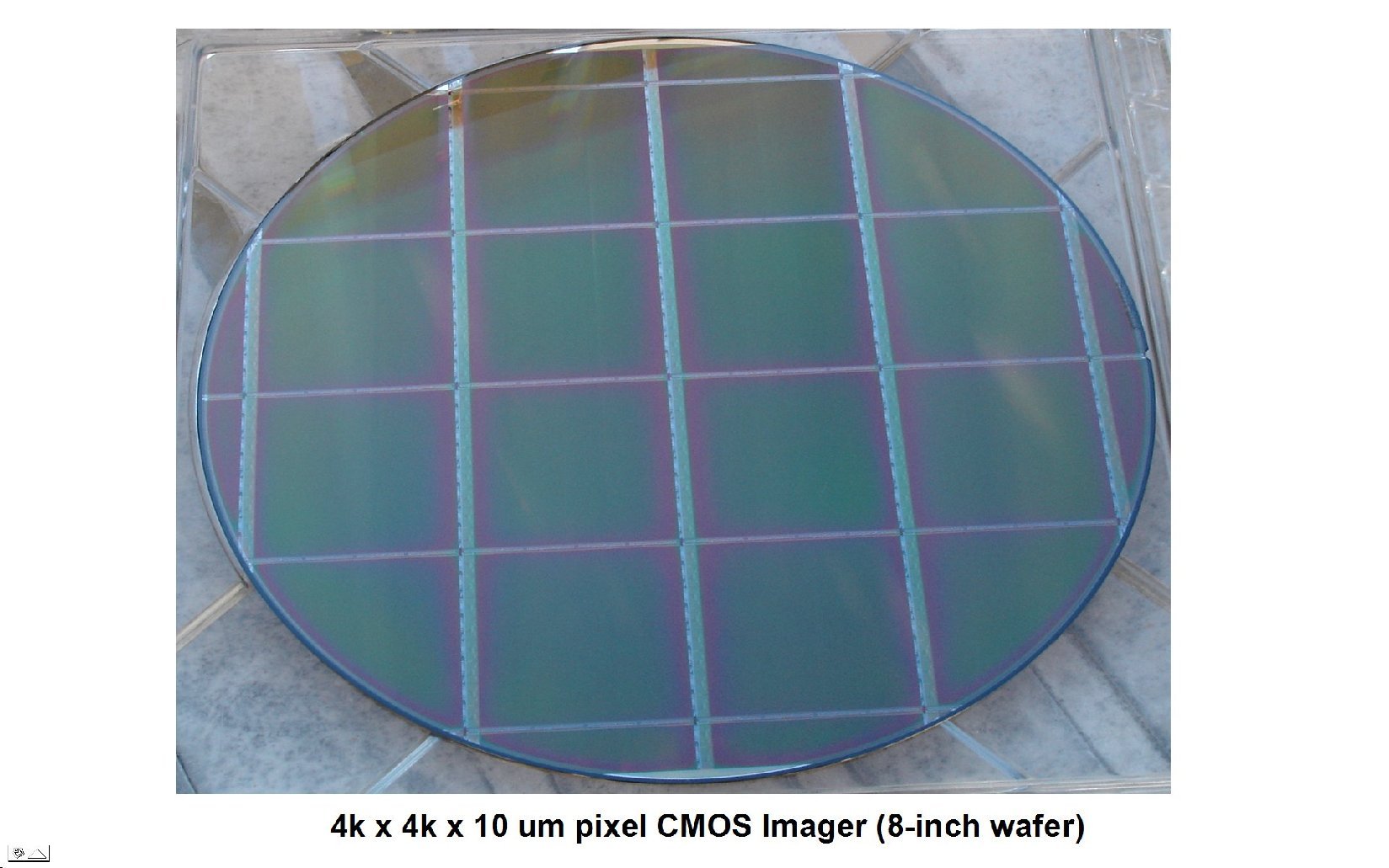

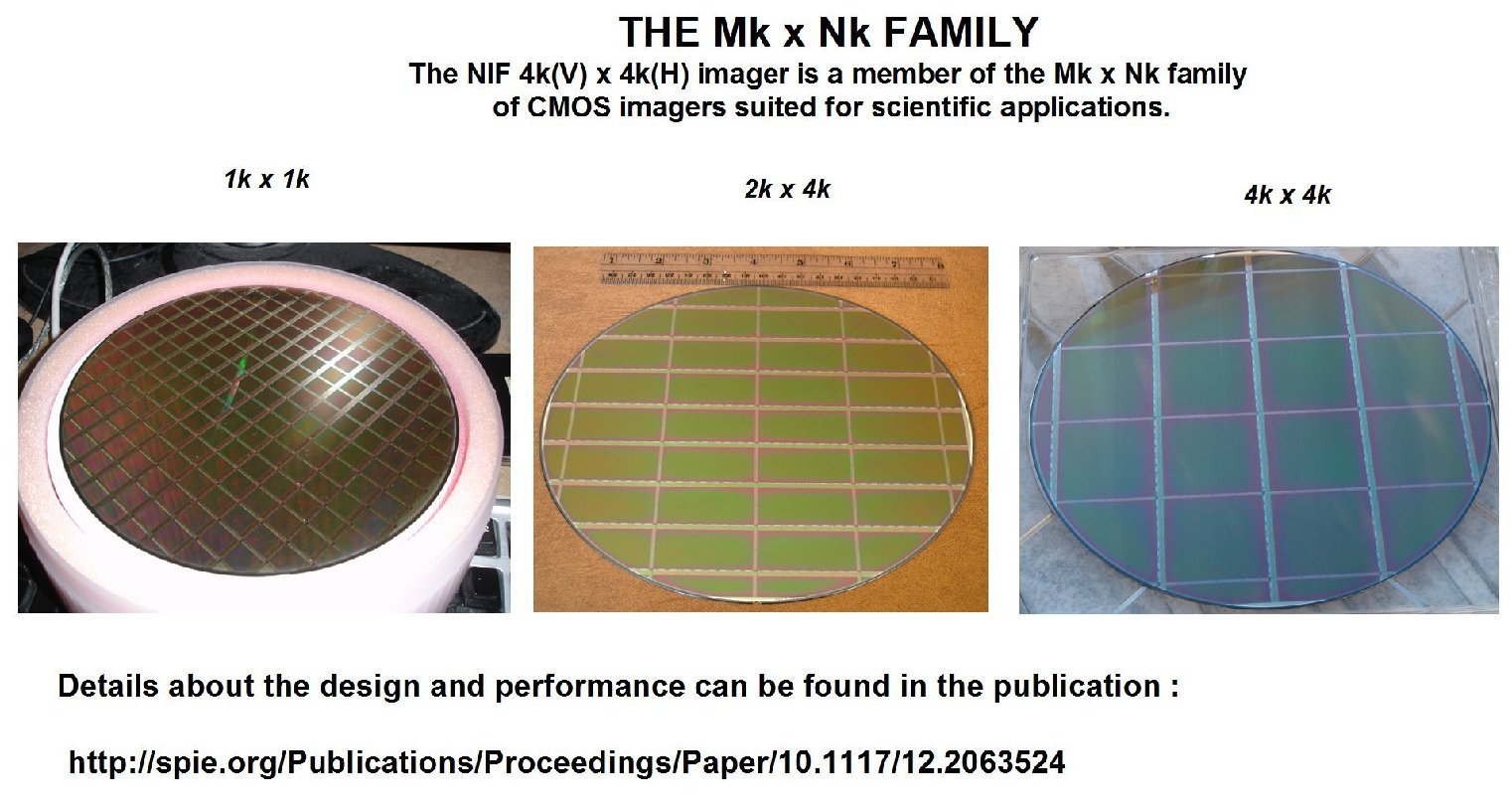

Janesick 4K x 4K eight-inch commercial CMOS imager



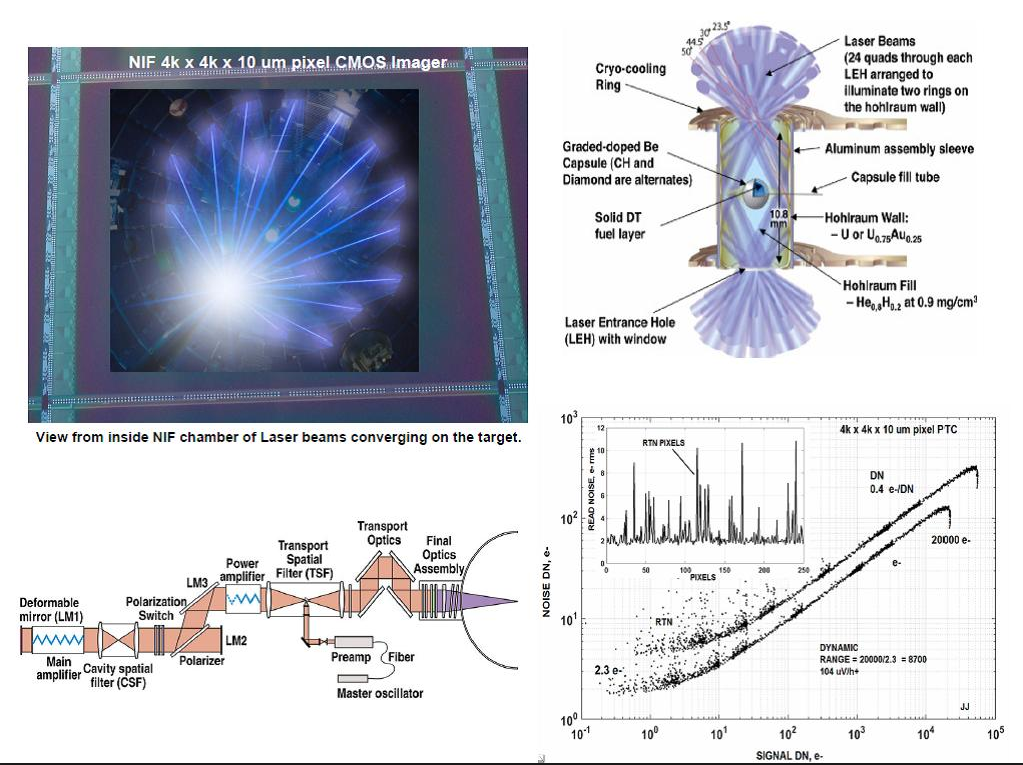

Janesick commercial CMOS 4k x 4k NIF imager


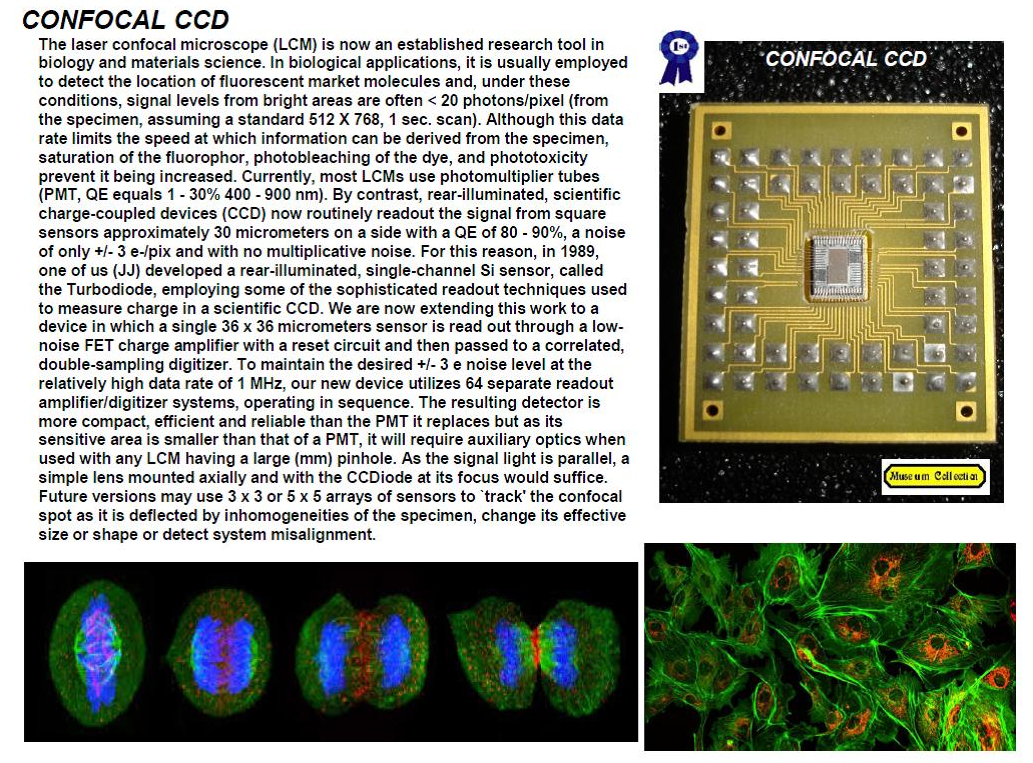

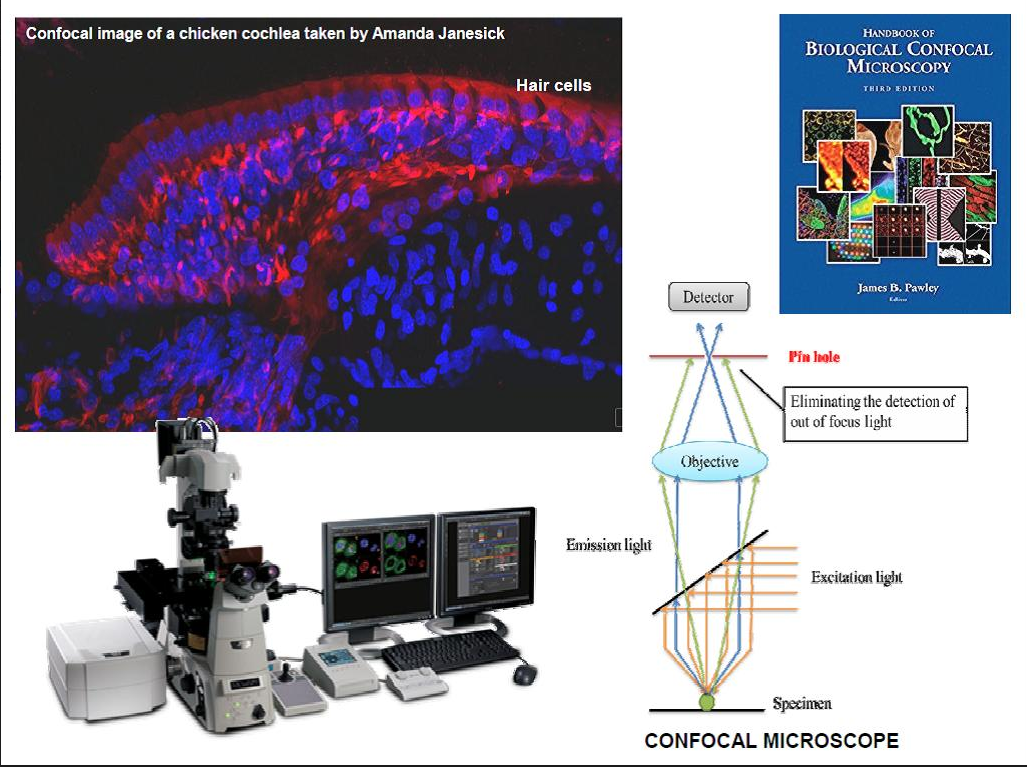

jlanesick Confocal microscope CCD imager





janesick Sandbox I commercial CCD imager wafer

Sandbox I above contains a number of scientific CCDs intended for different customers and purposes as described below. Sandbox I was the first of its kind for a multitude of other Sandboxes were fabricated for customers later on and still are today (2016). The chips were designed by James Janesick at JPL and fabricated at Reticon in 1992.

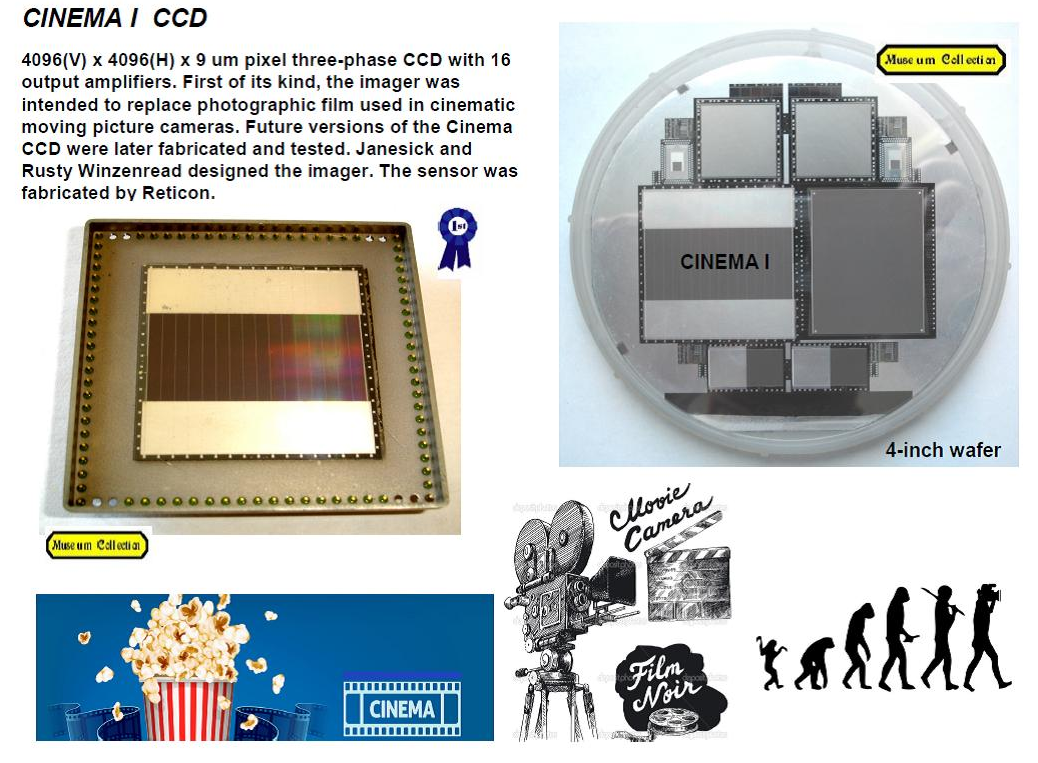

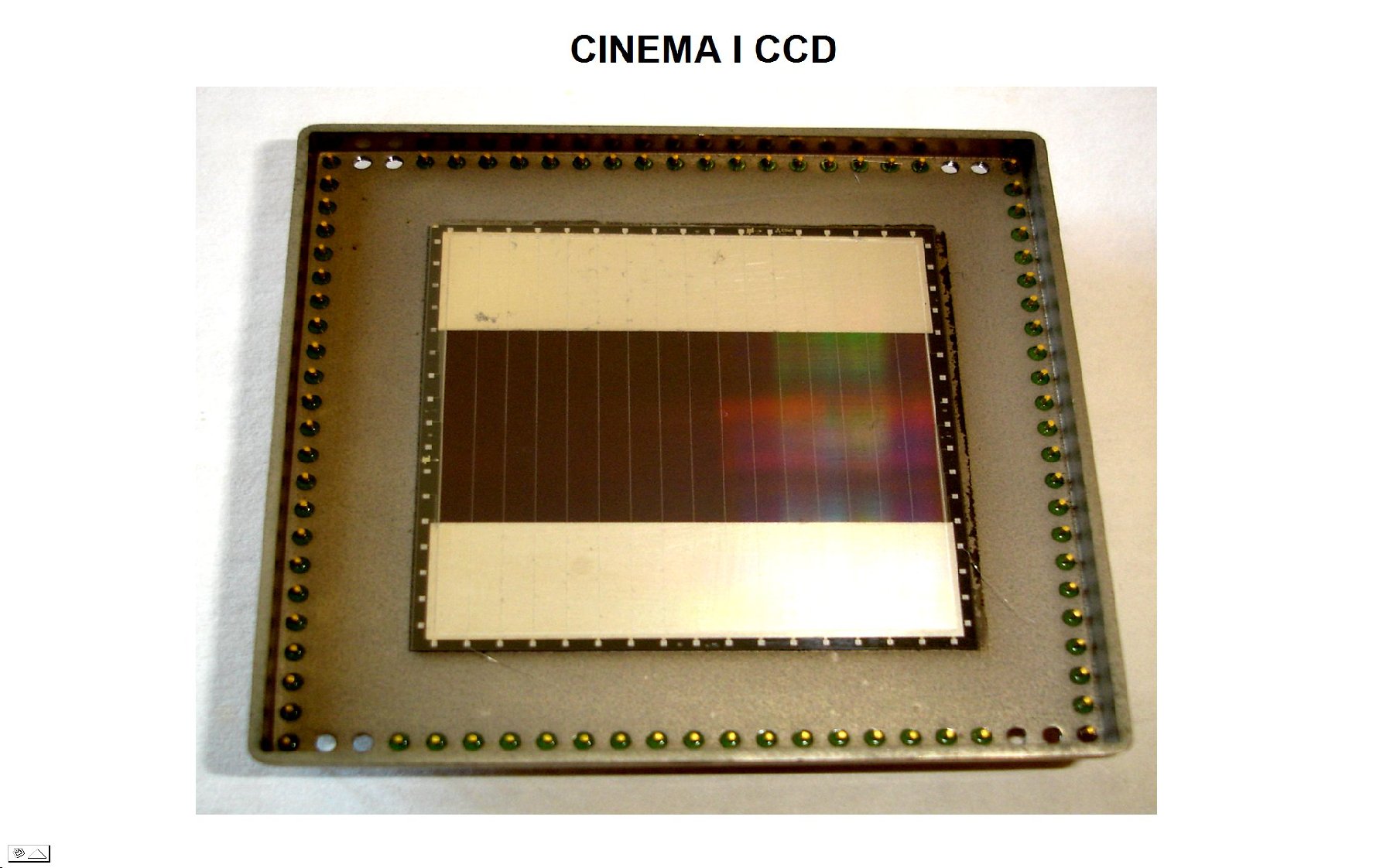

janesick Cinema I commercial CCD four-inch imager wafwer  janesick Cinema I commercial CCD imager


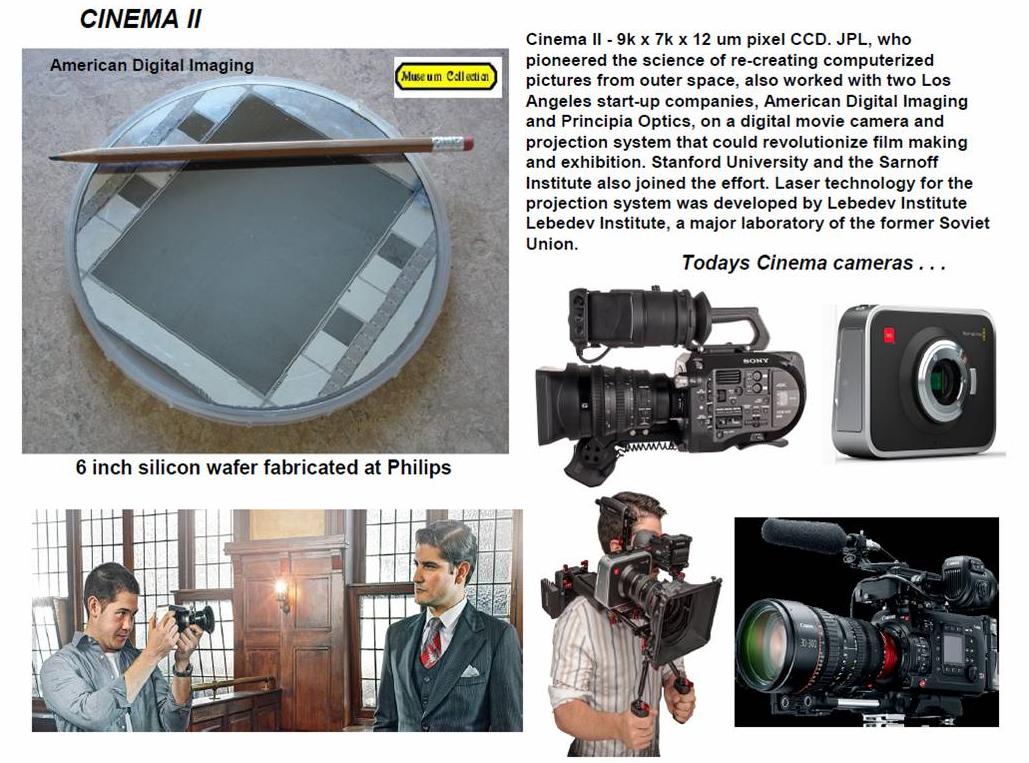

Janesick NAC 4096 x 4096 commercial Cinema CCD imager  Janesick Pixel Vision Inc. Cinema II Sandbox VIII commercoial CCD wafer

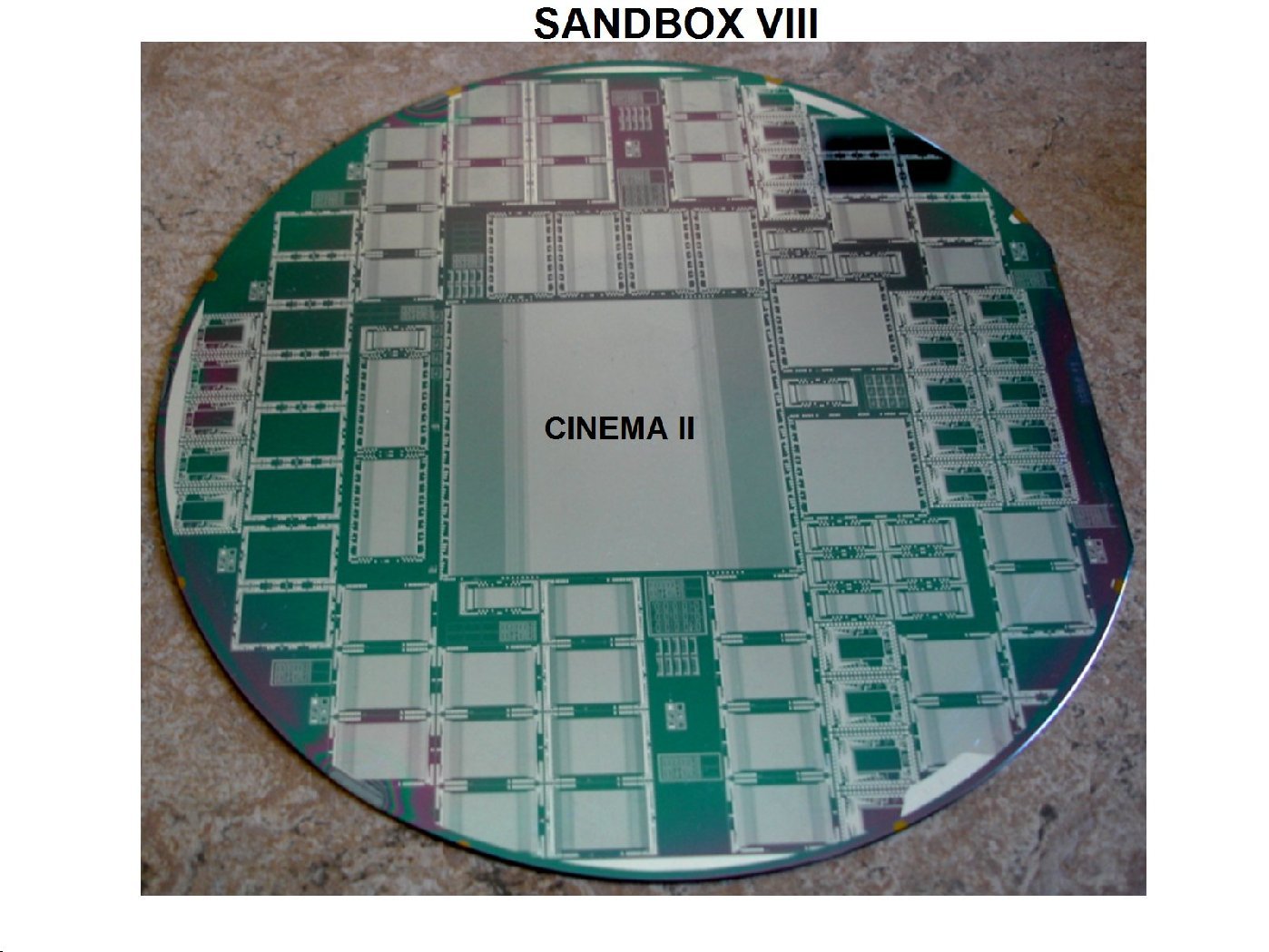

The Cinema II CCD is shown above in six-inch wafer and packaged form.  Cinema II CCD was fabricated on the Sandbox VIII run.  The imager exhibited higher speed performance than Cinema I above.  Cinema II was fabricated for NAC Japan while Janesick was at Pixel Vision (note the inscription on the lower left of the CCD - Pixel Vision Inc.).  Janesick opened Pixel Vision in 1995 and was technology director there for five years developing high-speed backside-illuminated CCDs for scientific and Cinema cameras.  The company eventually closed as CMOS technology was slowly replacing CCD technology for high speed low noise applications.

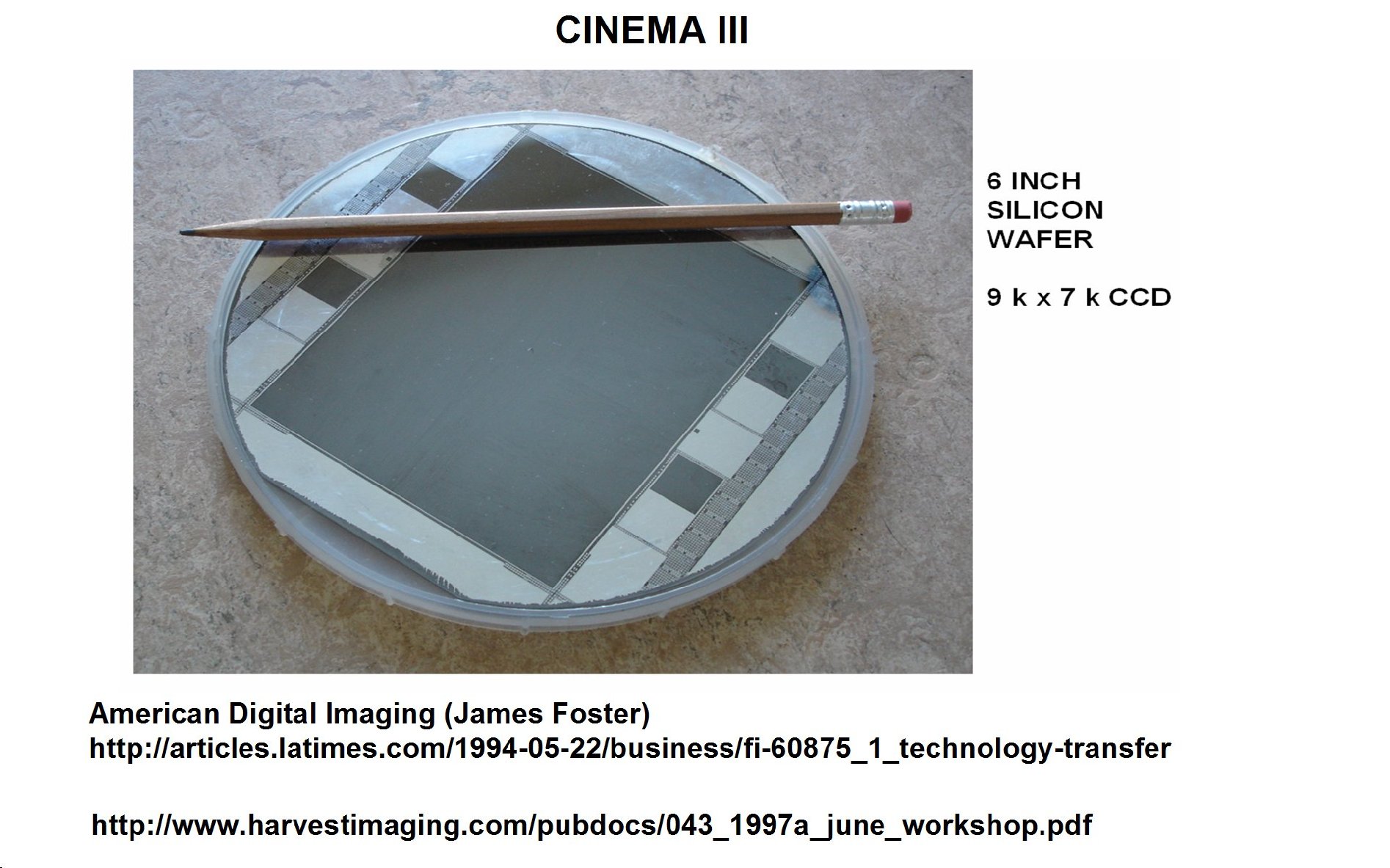

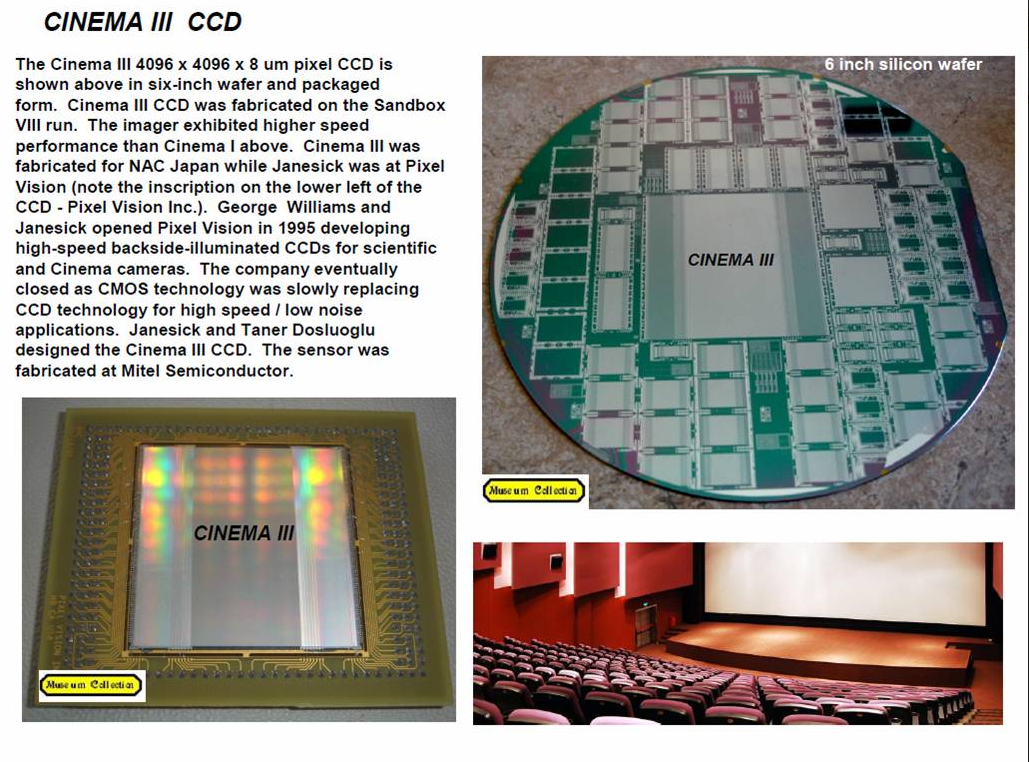

Janesick Cinema III commercial CCD imager wafer

Circulator CCD

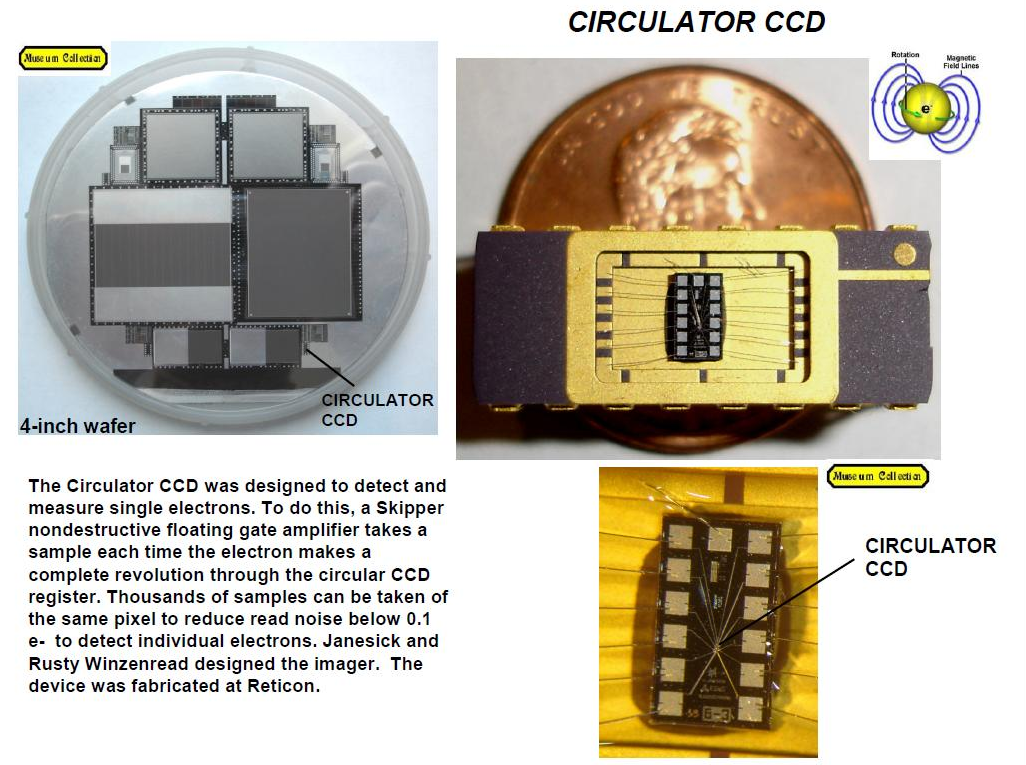

The device was designed to interrogate a single electron. To do this, a Skipper nondestructive floating gate amplifier takes a sample each time the electron makes a complete revolution. Thousands of samples can be taken of the same pixel thereby reducing noise below 0.1 e- for a clear measurement of the circulating electron.  The CUBIC CCD discussed above used a Skipper amplifier.  See the design of the Circulator chip below along with a packaged device.  The gold bond wires to the pads are 50 um in diameter approximately the same thickness as an European human hair.

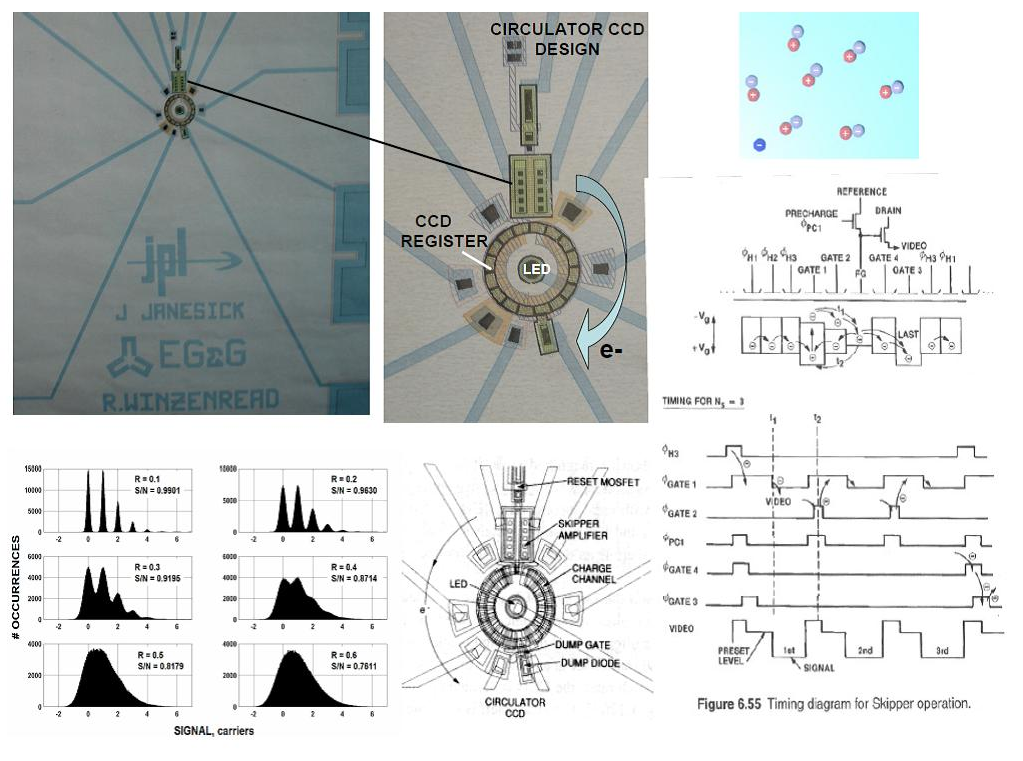

janesick Circulator commercial CCD imager design  Janesick Circulatlor CCD imager diagram

janesick Circulator commercial CCD chip

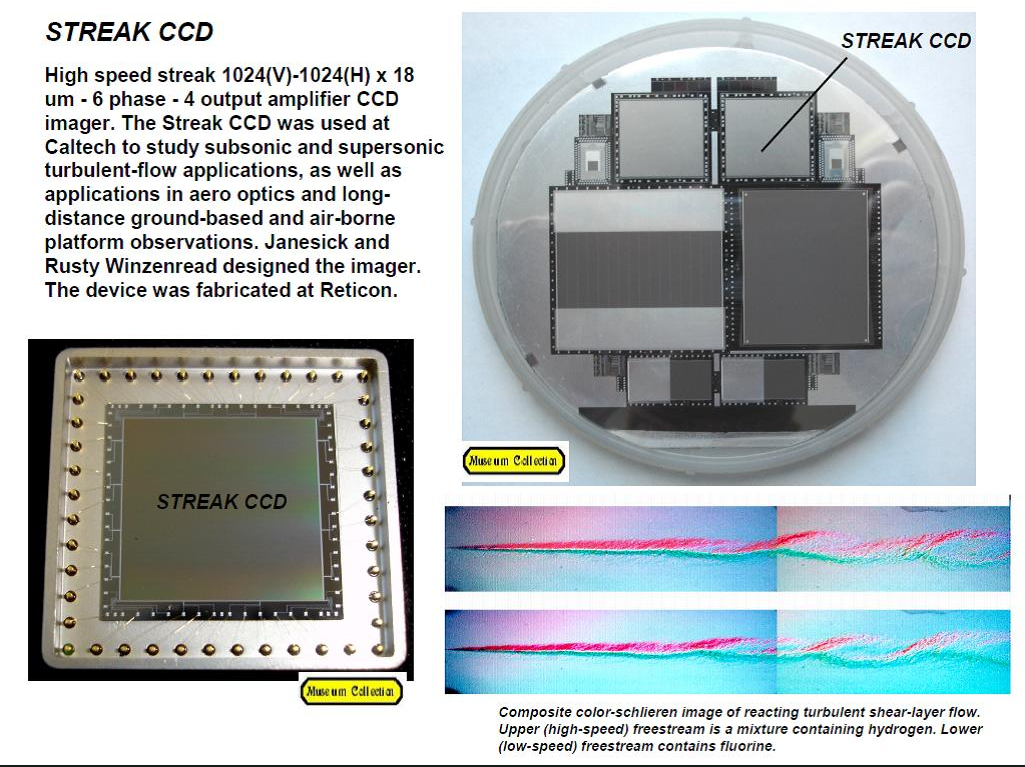

janesick high speed streak CCD commercial CCD imager for subsonic fluid turbulent flow physics

1024(V)-1024(H) x 18 um - 6 phase CCD - 4 output amplifiers

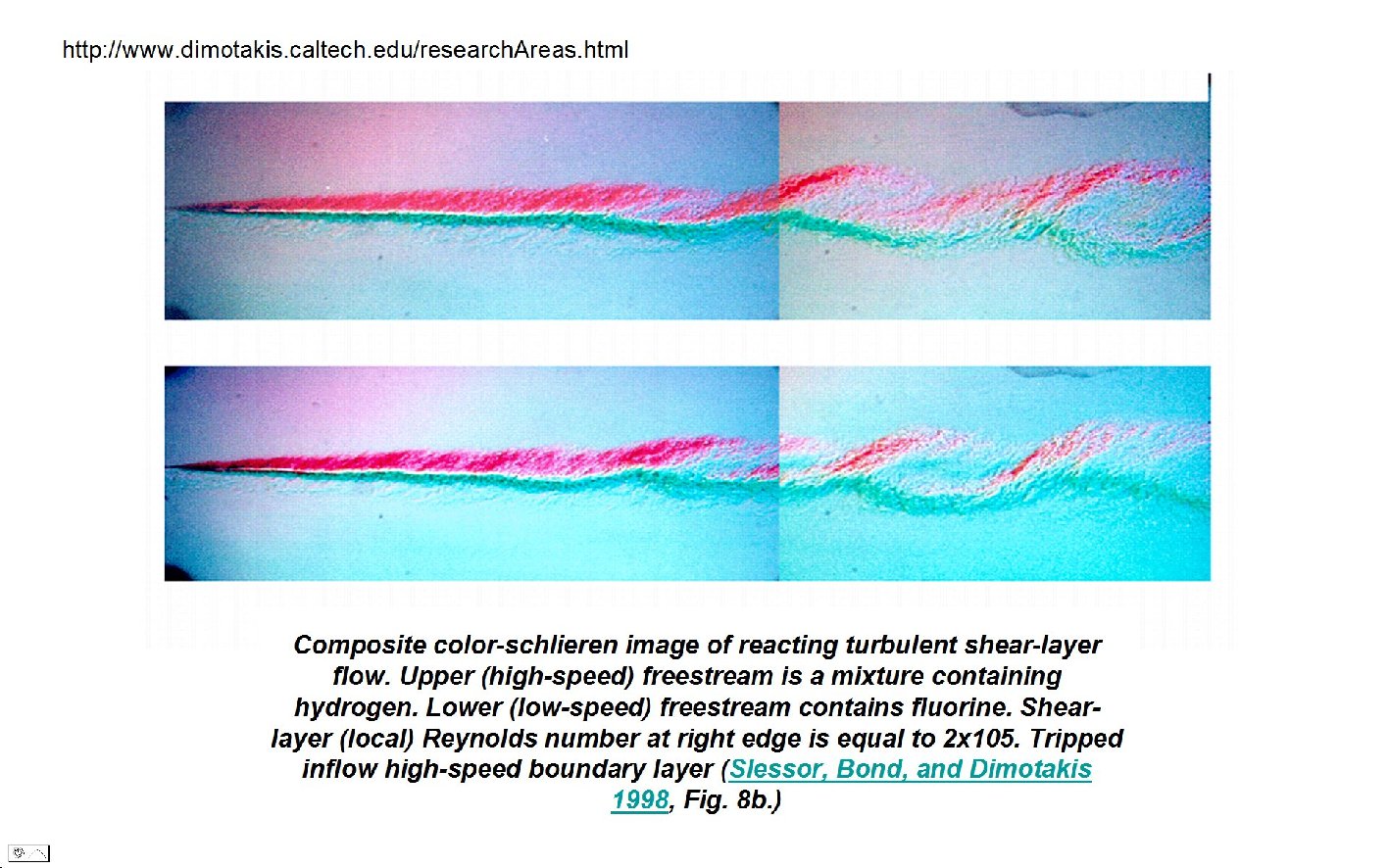

High speed streak CCD imager used at Caltech to study subsonic fluid turbulent flow physics.

http://www.dtic.mil/dtic/tr/fulltext/u2/a346401.pdf

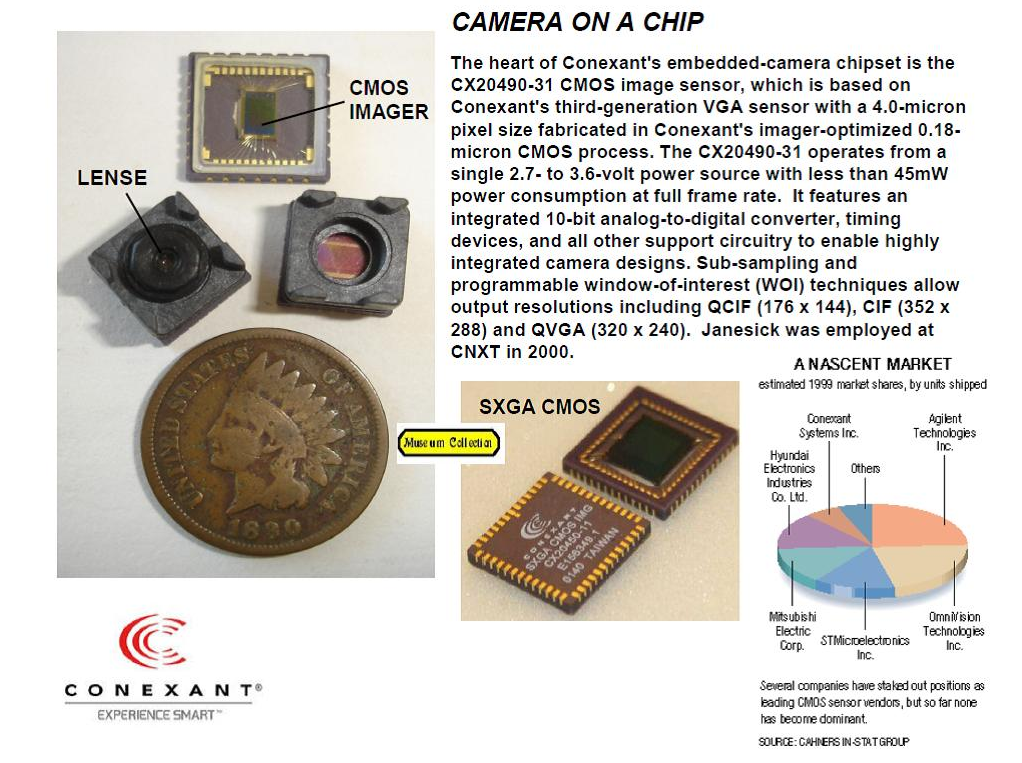

Janesick camera on a chip CMOS image sensor

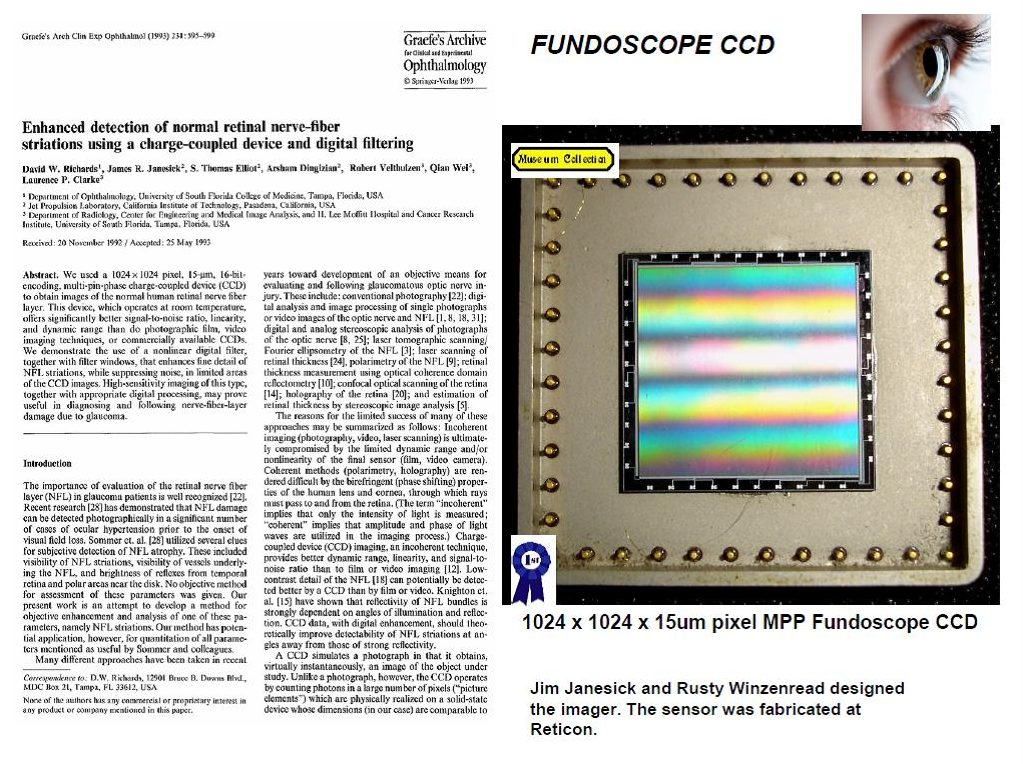

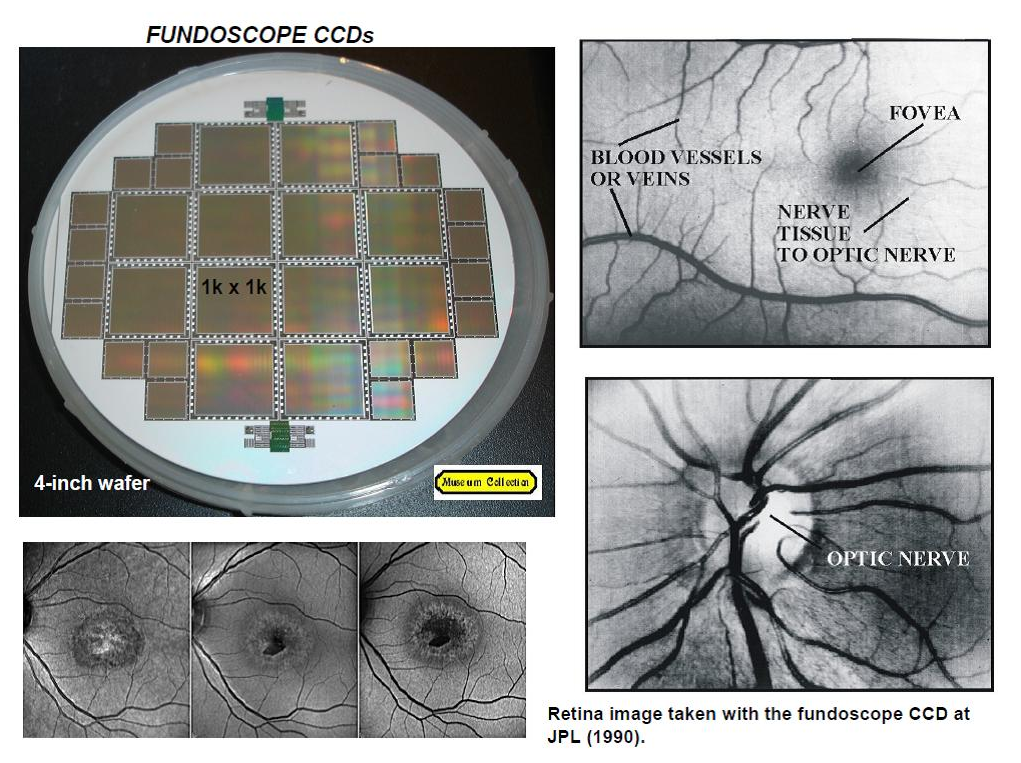

Janesick fundoscope with CCD imager

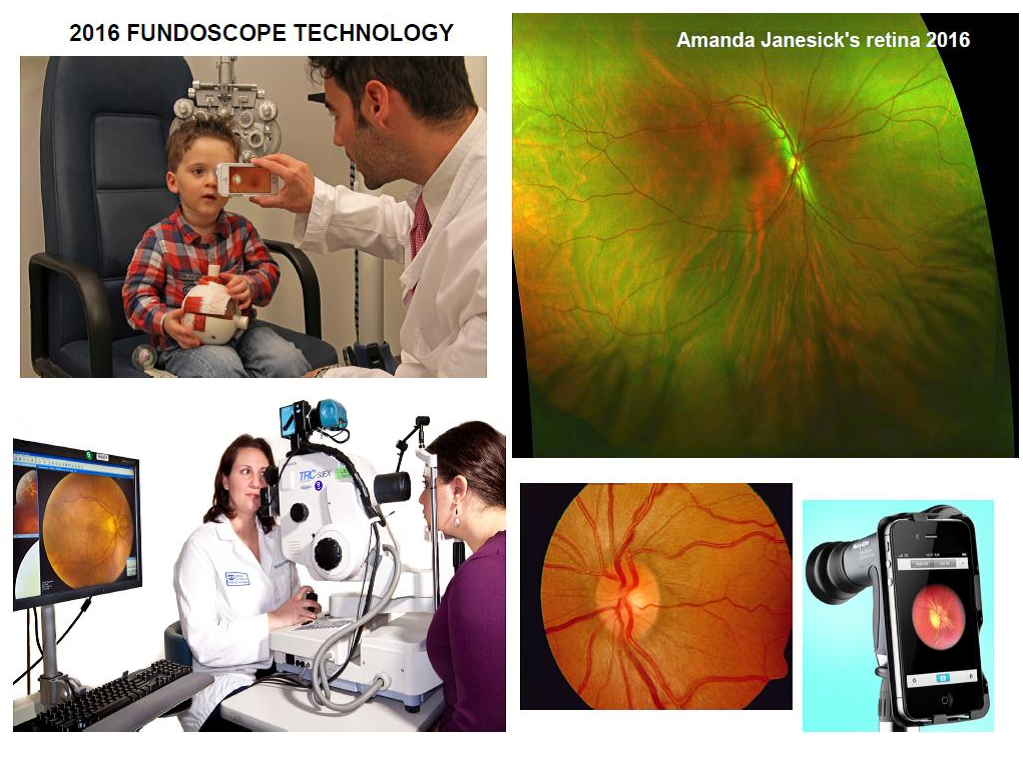

MODERN FUNDOSCOPE (An instrument for examining the interior structures of the eye, especially the retina, consisting essentially of a mirror that reflects light into the eye and a central hole through which the eye is examined.)

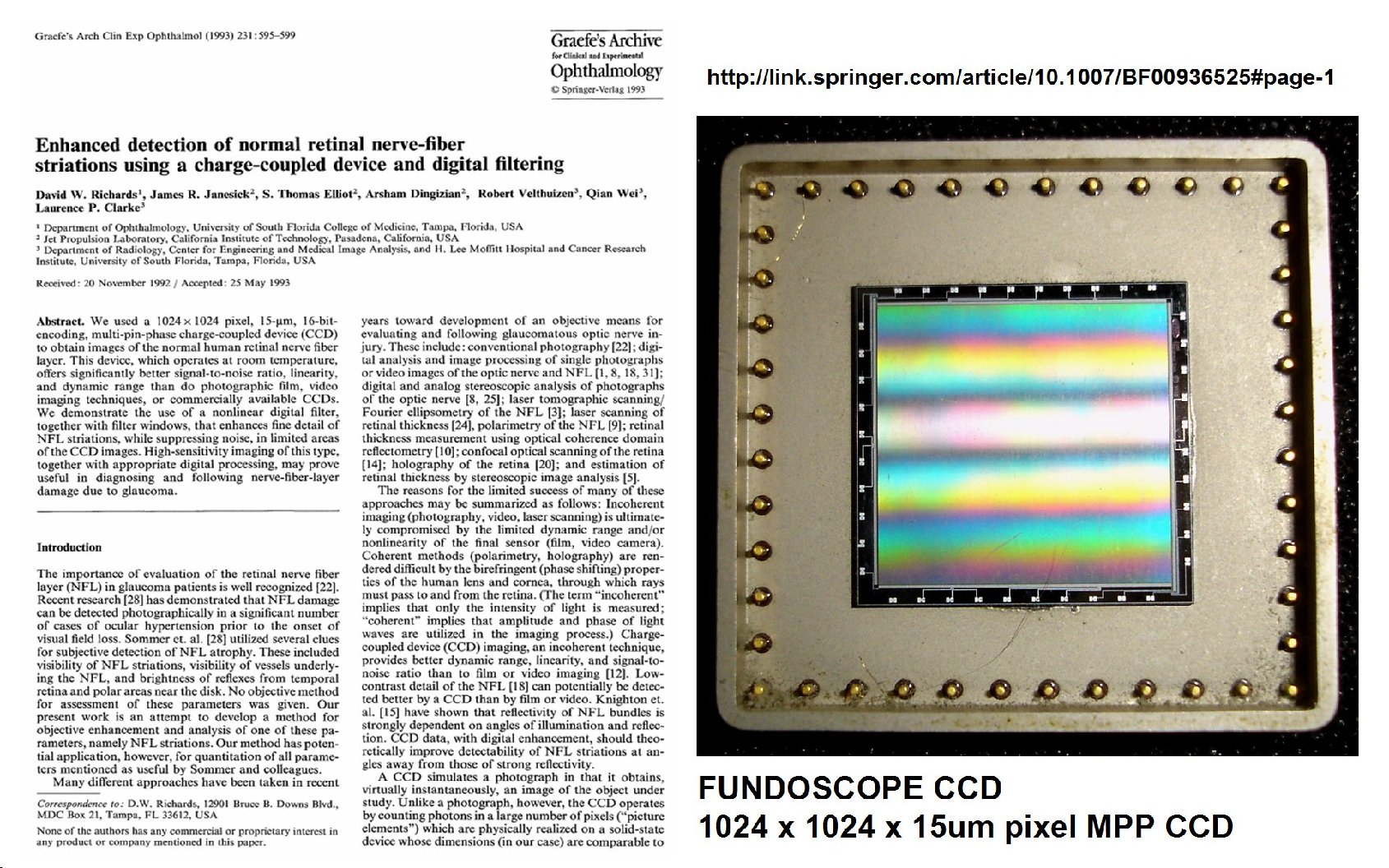

Janesick commercial fundoscope CCD imager

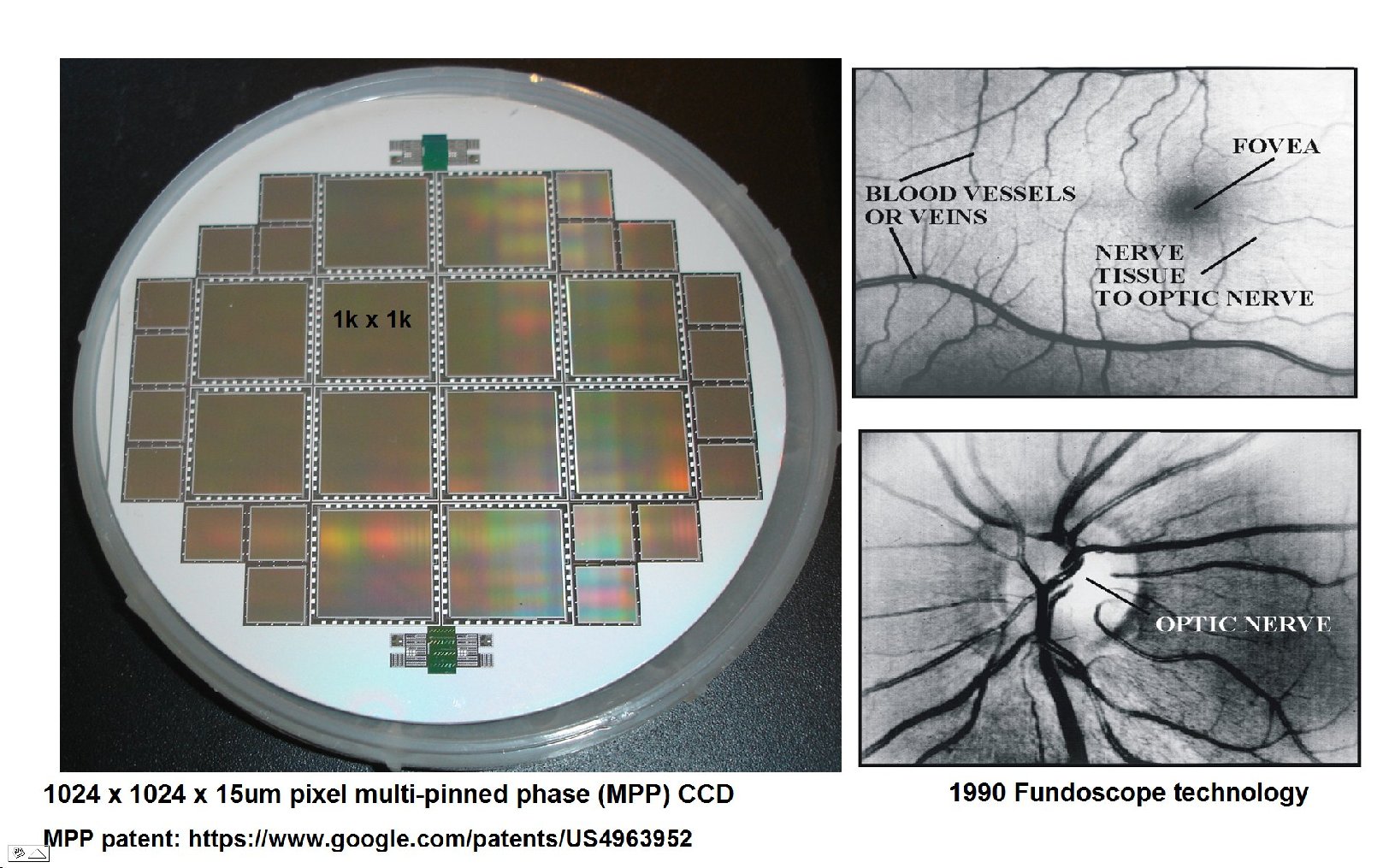

Janesick commercial multi-pinned phase CCD wafer


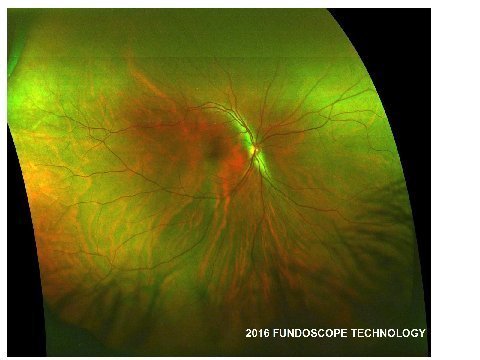

Janesicl commercial fundoscope human eye image
